Improving modularity of the lakes using Object Oriented Programming (OOP)

In the previous post I went through the steps of a “basic” implementation of the dynamics of the lakes using DAE approach. Using that working code, we can improve its modularity and reusability to implement series of lakes without repeting the basic code. With that we avoid incorporating small mistakes and also keep a clean, concise code that can be better reused and extended.

When it comes to a final design the components, there is no single, exact and perfect solution. There are multiple solutions that work, some may be better than others but all depends on the application and the required versatility and extensibility of the program.

To get a better idea of what I need, I will take into consideration a complete case provided by Petrone (2010), who developed a MPC for a hydro power valley consisting of 5 lakes and 4 section (reaches) of a river, with a tributary on the last section. The figure below illustrates this system:

Figure 1- Hydro Power Valley System (Petrone, 2010). Figure from Euan Russano - Own work

This shows some basic principles to be followed:

• Physical “objects” (lakes, valves, turbines, etc) should be represented by objects in the code.
• The design follows a kind of Composite Pattern (if you don’t know what I’m talking about it, please see here)
• Each “object” should have some kind of “port” so it is possible to connect one to another. For example, the outflow of Lake 1 is connected to the inflow of the valve, so that $q_{out}^{lake1} = q_{in}^{valve}$
• The composition of the model should be very extensive, such that I can have an object “lake 1”, which together with a valve is contained in a component “P1”, which in turn is contained in the one entity of the model.

Once I setup the model, I may use it to do some simulations or leave some degree of freedom in certain variables to proform optimizations. In this sense, I also make a separation between the model itself and the kind of problem. In OOP:

• The entire model is one object, which I can have several copies of it during the execution of a program.
• The specific problem being solved (simulation or optimization) is a higher-level object, which may “contain” an instance of the model and it is run according a specific configuration.

Using the Composite Pattern, the structure of the model shown in Figure 1 could be represented as follows.

Figure 2- Composite structure of Hydro Power Valley System. Figure from Euan Russano - Own work

Figure 3 shows the internal structure of some basic blocks.

Figure 3- Internal representation of some blocks in the Hydro Power Valley System. Figure from Euan Russano - Own work

This Figure introduces some other objects that are part of the system: variable, constraint, parameter and port

Implementation of the design using Python

# imports
import numpy as np
import matplotlib.pyplot as plt
from scipy.optimize import minimize

The first most basic unit is the Constant, representing values which doesn’t change during the simulation/optimization.

class Constant:
    """
    A simple class to represent constants in an optimization problem.

    :param value: The value of the constant. May be a scalar or a vector
    :type client: list, array, float or int.
    """
    def __init__(self, value):
        self.value = value

    def __call__(self):
        return self.value

Definition of the class Variable, which represents one variable in the optimization/simulation problem is as follows:

class Variable:
    """
    This class representa a decision variable in an optimization problem.

    :param index_var: An array that defines the length of the variable.
    :type client: Iterable

    :param bounds: Bounds of the variable. Use None for no bound. For example physical variables such as mass or temperature (K) may be
    only positive, so the bounds would be (0.0, None).
    :type bounds: tuple
    """
    def __init__(self, index_var=[0], bounds=(None, None)):
        self.value = [100] * len(index_var)
        # create array of Nones with 2 None for each variable
        #bnds = np.array([None for i in range(len(index_var)* 2)])
        bnds = [bounds for i in range(len(index_var))]

        # reshape to have 2 Nones on last dimension
        #bnds = bnds.reshape(len(index_var), 2)
        self.bounds = bnds

    def get_bounds(self):
        return self.bounds

    def  __setitem__(self, key, item):
        '''
        This method is used to set a bound on a index of the variable
        e.g height[0] = 0.0
        '''
        # specify a single value or (min, max) for as a constraint for an
        # indexed var
        if isinstance(item, float) or isinstance(item, int):
            self.bounds[key] = (item, item)
        elif isinstance(item, tuple):
            self.bounds[key] = item
        else:
            raise ValueError('Only tuple or numeric values are allowed as bounds.')


    def set_value(self, x):
        self.value = x

    def __call__(self):
        return self.value

The definition of the constraint object, representing a hard constraint in the optimization/ simulation problem. Its definition follows the residual format, i.e $f(x,t)=0$

class Constraint:
    """
    This class representa a constraint equation in an optimization problem, written in the residual format:
    f(x) = 0

    :param rule: A python function defining the constraint. The signature must be
    .. highlight:: python
    .. code-block:: python

        def rule(block):
            f = ....
            return f
        ...

    :type rule: Callable

    :param lb: The lower bound of constraint. Normally for an equality constraint lower and upper bound are set to zero.
    :type lb: float or int, optional.
    :param ub: The upper bound of constraint. Normally for an equality constraint lower and upper bound are set to zero.
    :type ub: float or int, optional.
    """
    def __init__(self, rule, lb=0, ub=0):
        self.rule = rule
        self.ub = lb
        self.lb = ub

    def __call__(self, model):
        return self.rule(model)

The Block represents the basic representation of a physical system.

class Block:
    """
    This class represents a conceptual block, a unit which has some meaning to hold certain variables and constraints within
    the optimization problem.
    """
    def __init__(self):
        self.variables = []
        self.constraints = []
        self.parent = None
        self.time = None

    def set_parent(self, parent):
        self.parent = parent

    def __setattr__(self, name, value):
        if isinstance(value, Variable):
            super().__setattr__(name, value)
            self.variables.append(value)
        elif isinstance(value, Constraint):
            self.add_cons( value, value.lb, value.ub)
        else:
            super().__setattr__(name, value)

    def update_time(self, time_vec):
        self.time = time_vec

    def change_inputs(self, x):
        self.parent.change_inputs(x)

    def add_cons(self, constraint, lb=0, ub=0):

        def cons(x):
            self.change_inputs(x)
            return constraint(self)

        self.constraints.append( {'type': 'eq', 'fun': cons} )

The Composite class represents the higher-level blocks, which contains one or several blocks or also other composite blocks.

class Composite:
    """
    This class represents a higher-level block, able to "aggregate" multiple blocks. In Composite design pattern, the
    composite is a high-level block while the Block class is a leaf.
    """
    def __init__(self):
        self.variables = []
        self.constraints = []
        self.blocks = []
        self.time = [0]
        self.parent=None

    def __setattr__(self, name, value):
        if isinstance(value, Block):
            block = value
            for variable in block.variables:
                self.variables.append(variable)
            for constraint in block.constraints:
                self.constraints.append(constraint)
            block.set_parent(self)
            block.update_time( self.time )
            self.blocks.append( block )
        super().__setattr__(name, value)

    def update_time(self, time_vec):
        self.time = time_vec
        for block in self.blocks:
            block.update_time( time_vec )

    def change_inputs(self, x):
        # if this is not a root block, then call recursively the parent until it reaches the root node
        if self.parent:
            self.parent.change_inputs(x)
        else: # this is the root node
            curr_index = 0
            for variable in self.variables:
                variable.set_value(x[curr_index:curr_index+len(variable.value)])
                curr_index += len(variable.value)

    def get_initial_guess(self):
        if self.parent:
            self.parent.get_initial_guess()
        else: # this is the root node
            xGuess = []
            for variable in self.variables:
                xGuess.extend(variable.value)

        return xGuess

    def get_bounds(self):
        # collect the bounds for all variables
        bnds = []
        for variable in self.variables:
            bnds.extend( variable.get_bounds() )

        return bnds

    def get_constraints(self):
        return self.constraints

    def connect(self, block1, block2):
        #inport.set_variable(outport.get_variable())
        block1.outlet.append(block2)
        block2.inlet.append(block1)

Define a class SimulationProblemto handle simulations using the composed model.

class SimulationProblem:
    """
    Create a simulation problem, i.e a problem with no degrees of freedom (number of variables = number of constraints)

    :param model: The cacao model to be simulated
    :type model: cacao.generics.Composite
    """
    def __init__(self, model):
        self.model = model

    def run(self, verbose = False):
        """
        Perform a simulation of the cacao model along the time steps defined in the model (model.time)

        :param verbose: Set to True to see extended output. Defaults to False.
        :type verbose: bool, optional

        :return: Simulation results (attribute x contains the actual solution value of the variables).
        :rtype: scipy.optimize.OptimizeResult
        """
        obj = lambda x: 0.0
        xGuess = self.model.get_initial_guess()
        bnds = self.model.get_bounds()
        cons = self.model.get_constraints()
        res = minimize(obj, xGuess, method='trust-constr',bounds=bnds, constraints=cons)
        if verbose:
            print(res)
        return res

Testing the design with basic examples

Non-linear system of equations

Example obtained from APMonitor.

Equation 1: $$ x + 2y = 0 $$

Equation 2: $$ x^2 + y^2 = 1 $$

model = Composite()

eqs = Block()
eqs.x = Variable()
eqs.y = Variable()

eqs.eq1 = Constraint(lambda block: block.x()+2*block.y()-0)
eqs.eq2 = Constraint(lambda block: block.x()**2+block.y()**2-1)

model.eqs = eqs
sim = SimulationProblem(model)

result = sim.run()
model.change_inputs(result.x)

print('x = ', model.eqs.x())
print('y = ', model.eqs.y())

x  =  [0.89442719]
y  =  [-0.4472136]


/home/euan/.local/lib/python3.8/site-packages/scipy/optimize/_hessian_update_strategy.py:182: UserWarning: delta_grad == 0.0. Check if the approximated function is linear. If the function is linear better results can be obtained by defining the Hessian as zero instead of using quasi-Newton approximations.
  warn('delta_grad == 0.0. Check if the approximated '

Solving a simple differential equation

Example obtained from APMonitor. $$ k\frac{dy}{dt}=-ty $$

Initial condition: $y(0)=5.0$

model = Composite()
model.time = np.linspace(0,20,100)
sys1 = Block()

sys1.k = 10
sys1.y = Variable(model.time)

sys1.y[0] = 5.0

def eq1(block):
    dydt = (block.y()[1:] - block.y()[:-1])/np.diff(block.time)
    return block.k*dydt+block.time[1:]*block.y()[1:]
sys1.eq1 = Constraint(eq1 )


model.sys1 = sys1

sim = SimulationProblem(model)
result = sim.run()

model.change_inputs(result.x)
plt.plot(model.time, model.sys1.y())

[<matplotlib.lines.Line2D at 0x7f762590af70>]

Draining tank (same example from part 4 of this series)

# some constants
RHO = 1000 # kg/m3 density of water
c = 0.62
g = 9.81
A = 16
A_orifice = 5e-4
m0 = 10*A*RHO

model = Composite()
model.time = np.linspace(0, 8e4, 50)

# tank model
tank1 = Block()
tank1.inlet = [] # inflows get appended here
tank1.outlet = [] # outflows get appended here
tank1.mass = Variable(model.time)
tank1.height = Variable(model.time)
tank1.area = A

tank1.mass[0] = m0 # initial condition

def mass_balance(block):
    dmdt = np.diff(block.mass())/np.diff(block.time)
    inflow = np.zeros_like(block.time)
    for block2 in block.inlet:
        inflow += block2.mass_flow_rate()
    outflow = np.zeros_like(block.time)
    for block2 in block.outlet:
        outflow += block2.mass_flow_rate()
    resid = dmdt - (inflow[1:] - outflow[1:])
    return resid

tank1.mass_balance = Constraint(mass_balance)

def volume_height(block):
    resid = block.mass() - block.area*RHO*block.height()
    return resid

tank1.volume_height = Constraint(volume_height)

# orifice model
orifice = Block()
orifice.mass_flow_rate = Variable(model.time)
orifice.outport_flow = OutPort(orifice.mass_flow_rate)
orifice.inlet = [] # upstream object goes here
orifice.outlet = [] # downstream object goes here
orifice.area = A_orifice

def outflow(block):
    h = np.maximum(0.0, block.inlet[0].height()) # height can not be negative due to sqrt
    resid = block.mass_flow_rate() - RHO*block.area*c*np.sqrt(2*g*h)

    return resid

orifice.mech_energy = Constraint(outflow)

model.tank1 = tank1
model.orifice = orifice
model.connect(tank1, orifice)

sim = SimulationProblem(model)
result = sim.run()

model.change_inputs(result.x)

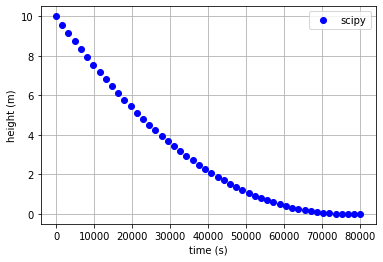

plt.plot(model.time, model.tank1.height(), 'bo', label='scipy');
plt.xlabel('time (s)')
plt.ylabel('height (m)')
plt.legend()
plt.grid();

Compare the simulated results with the analytical (exact) one to confirm that all is working as expected.

def case1_exact(t):
    A_orifice = 5e-4
    A = 16.0
    h0 = 10.0
    t0 = 0.0
    c = 0.62
    g = 9.81

    h = (np.sqrt(h0) - A_orifice*c*np.sqrt(2*g)*(t-t0)/(2*A))**2

    return h

h_exact = case1_exact(model.time)

# Mean squared errors
MSE = np.mean((model.tank1.height() - h_exact)**2)

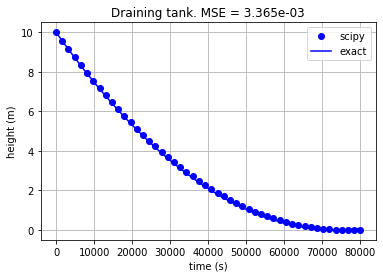

plt.plot(model.time, model.tank1.height(), 'bo', label='scipy');
plt.plot( model.time, case1_exact(model.time),'b', label='exact')
plt.xlabel('time (s)')
plt.ylabel('height (m)')
plt.legend()
plt.title(f'Draining tank. MSE = {MSE:.3e}')
plt.grid();

Conclusion

In this post we have improved the interface of the model by creating classes and using them to hide the internal methods used to perform the simulation. In the next post I want to use inheritance to make the code even more modular and to make it easier to create multiple units with similar physical behavior without repeating the same code. Additionally we will start to use the basic objects developed here to construct higher-level systems, such as the lakes, pumps, turbines, reaches and so forth. I see you in the next post.
